Land Pride SBD3596

New / Land Pride / Snow Tools / SBD35 Series Snow Blowers / SBD3596

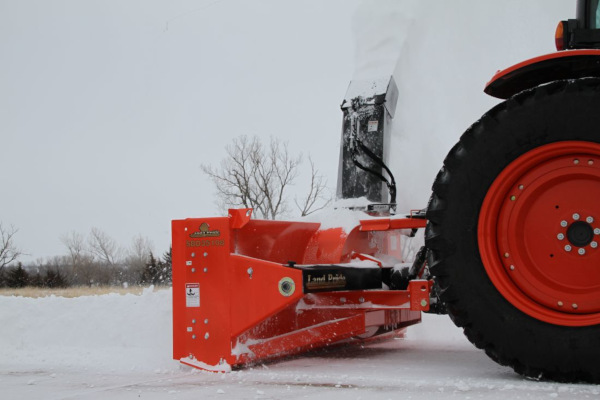

Land Pride SBD3596 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride SBD3596 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

Features Benefits
Quality heavy-duty gearbox Durable construction provides long life.
Two position hitch vertically Helps reduce driveline angularity issues when raising the 3 Point arms up.
Allows lower 3 point arms to be positioned more parallel to the ground when in operation.
Top holes in lower clevis make the units quick hitch compatible.
Adjustable hitch horizontally HItch can be extended forward for standard 540 rpm without Quick Hitch.
Hitch can be adjusted back for standard 540 rpm with Quick Hitch.
Hitch can be extended forward for optional 1000 rpm gearbox without Quick Hitch.
Hitch can be adjusted back for optional 1000 rpm gearbox with Quick Hitch.
Large main housing with dual
augers		 Dual augers are capable of making 40" high cuts through large snow drifts.
2 1/2" x 3/8" Auger flight Auger is built heavy-duty to handle heavy work.
Large impeller diameter Has the ability to move and throw large amounts of material farther.
Hard steel bolt-on reversible
grader blade		 Bolt-on blade can be replaced before auger housing becomes exposed to wear. Hardened
steel blades last longer and because the blade is reversible, it can be flipped over to
double the blade’s life.
Hydraulically gear driven
chute rotator		 Gives the operator the ability to change direction snow is being blown using a hydraulic
control lever, without having to get out of the cab.
Shearbolt protected gearbox,
drive shaft, impeller, and
auger		 Eliminates costly repairs.
Greaseable bearings Less drag and extends life of unit.
Skid shoe wear surfaces are
constructed of AR400 steel		 AR400 steel last longer than mild steel.
Skid shoes are replaceable Bolt-on skid shoes can be replaced before auger side plates become exposed to wear.
Skid shoes and adjustable They can be adjusted to carry the Snow Blower above loose gravel and crushed rock or
set to remove snow close to surfaces such as asphalt and concrete.
Options
Two skid shoe options Multiple surfaces allows you to pick the correct skid shoe for your application.
Hydraulically controlled
deflector		 Gives the operator the ability to change distance snow is being blown from the discharge
chute using a hydraulic control lever, without having to get out of the cab.

Specifications

Model No. SBD3596
Tractor Horsepower 85-125 HP
Working Height 40"
Working Width 96"
Overall Width With Outer Skid Shoe Option 101 1/2"
Weight: Includes Hydraulic Deflector Cylinder and Excludes Skid Shoes 1,614 lbs
PTO Speed 540 rpm
3-Point Hitch Category Cat. ll & lll
Hitch Adjustment 2 Position
Quick Hitch Compatible Yes, except with some large tractors.
Main Housing Material 10 Gauge
Side Plate Material 1/4"
Grader Blade Bolt-on, reversible, and replaceable hardened steel full length
Chute Opening At Base 12"
Chute Rotation 220 Degrees (Hydraulically driven sprocket)
Impeller Housing Depth 10 1/8"
Impeller Diameter 34"
Number of Impeller Blades 4
Auger Diameter 16"
Auger Flighting 3/8" x 2 1/2" (Before rolling)
Number of Paddles Per Auger 4
Gearbox Oil Capacity & Type 3.59 Pints of SAE 90W Gearlube
Drive Chain #60 RC
Driveline Category Cat. 5, Shearbolt protected
Driveline Shearbolt Size M10 x 1.5 x 55 GR8.8
Drive Shaft Shearbolt Size 1/4" -20 Grade 5 bolt
Optional Equipment
1000 RPM Reduction Box N/A
Bolt-on Outer Skid Shoes Side mounted with AR400 wear surfaces, adjustable & replaceable (32 lbs)
Bolt-on Inner Skid Shoes In-board mounted on the rear with AR400 wear surfaces, adjustable & replaceable. (19 lbs)
Deflector: Manual Standard with manual locking bar (2 lbs)
Deflector: Hydraulic Hydraulic cylinder (32 lbs)
