Land Pride PFS8010

New / Land Pride / Seeders / PFS Series Spreaders / PFS8010

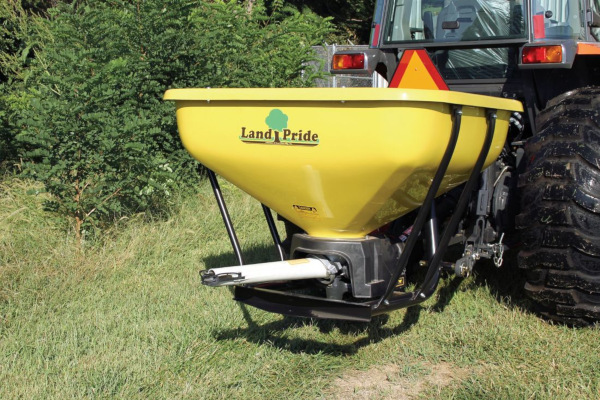

Land Pride PFS8010 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride PFS8010 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

FEATURES BENEFITS
High hopper capacities Able to cover large areas between hopper refills.
Low profile hoppers Low filling height. Easy to fill.
Drive unit is without gears or hydraulic motors Provides simple maintenance.
One piece hopper molded of fiberglass or polyethylene Plastic construction to eliminate corrosion. Seamless for accurate and consistent emptying.
Parts in direct contact with product are constructed of non corrosive materials Helps eliminate corrosion of parts.
Spreading capacity Highly productive at 44 to 890 lbs. per acre.
Pendulum type broadcast Provides even spreading and controlled coverage up to 50 ft. effective spreading width. Pendulum system insures that the material is always spread the same on left and right side.
Two position pendulum angle Allows to increase or decrease spreading width.
Heavy-duty tubular frame Supports hopper weight with optional extensions when full.
Tow hitch Good for pulling a trailer loaded with product to fill the spreader or pulling a drag harrow. (Not available with PFS8010 model.)
540 RPM shielded PTO For added safety.
Standard Plastic pendulum spout Protects from corrosive material to enhance longevity. Optional spouts are constructed of stainless steel to enhance longevity.
Variable adjustable gate Provides for precision control of discharge rate.
Stainless steel gate Protects from corrosive material enabling gate to operate smoothly.
Plated adjustment levers Protects from corrosive material to enhance longevity.
PFS4000 with Cat. I 3-point hitch
PFS5060 with Cat. I & II 3-point hitch
PFS8010 with Cat. II 3-point hitch		 For attachment to a wide range of tractors.
Optional Agitator Kit Helps keep light fluffy material from bridging. (Not available on the PFS4000 model.)
Optional Hydraulic Gate Kit Allows the operator to open and close the discharge gate hydraulically on the go. (Not available on the PFS4000 model.)
Optional Hopper Extensions Kit Increases hopper capacity. (Not available on the PFS4000 model.)

Specifications

Model Number PFS8010
Horsepower @ 540 rpm required to power
drive unit only.		 6 hp
Hitch type 3-Point Cat. II
Capacity *   Without hopper top extension
With optional hopper top extension
With larger optional hopper top extension		 30 cu ft / 2,040 lbs
37 cu ft / 2,522 lbs
44 cu ft / 2,998 lbs
Weights ** Without hopper top extension
With optional hopper top extension
With larger optional hopper top extension		 403 lbs
419 lbs
425 lbs
Overall width 75"
Overall length 53.2"
Overall height / Loading height
Without hopper top extension
With optional hopper top extension
With larger optional hopper top extension
38"
42"
47"
Tow hitch capacity Not Available
Delivery type Pendulum
Pendulum construction Plastic spout
Working height (End of pendulum) 29 1/2"
Effective spread width (min.-max.) 2'-4" to 46'-0"
Depending on spout, material and power take-off speed at 540 rpm.
Power take-off speed 540 rpm
Drive unit 1 3/8" shaft with 1:1 ratio
Hopper material Square hopper constructed of seamless fiberglass
Frame construction and finish Steel welded tubular frame with baked-on epoxy finish
Adjustment levers Plated
Agitator Extension Kit Optional
Hydraulic Gate Kit Optional
Hopper Extension Kit Optional
Ground coverage per hour
20 ft Effective spread width
26 ft Effective spread width
32 ft Effective spread width
40 ft Effective spread width
45 ft Effective spread width
7.3 to 17 acres/hr. traveling at 3 to 7 mph.
9.5 to 22 acres/hr. traveling at 3 to 7 mph.
11.6 to 27 acres/hr. traveling at 3 to 7 mph.
14.5 to 34 acres/hr. traveling at 3 to 7 mph.
16.7 to 39 acres/hr. traveling at 3 to 7 mph.
