Land Pride RCR1872

New / Land Pride / Rotary Cutters / RCR18 Series Rotary Cutters / RCR1872

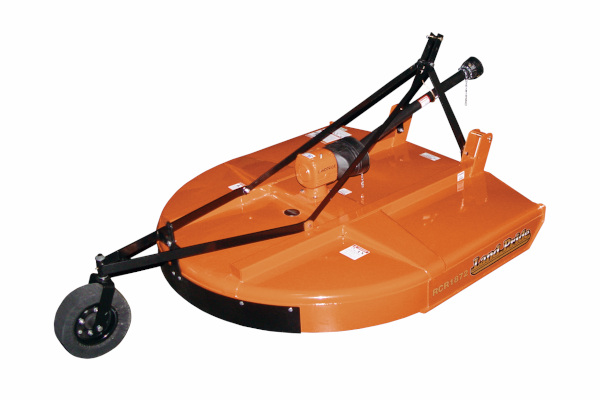

Land Pride RCR1872 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride RCR1872 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

FEATURES BENEFITS
Surpassed rugged industry standards All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.
Cat. 3 drive-line with shear-bolt Shear-bolt offers maximum drive-line protection.
Cat. 3 drive-line with 2-plate slip-clutch Slip-clutch drive-line offers convenience for continual work.
Dual position clevis type 3-point floating top link Permits deck to follow the terrain for an even cut. Additional set of holes for tractors with shorter top links.
Lower clevis type 3-point hitch Allows for ease of hook-up to tractor. Also adds additional strength allowing for an even pull from the tractor’s lower arms, vs. pulling on a single pin design.
Heavy 10 gauge deck construction Can withstand more abuse than lighter gauge decks.
Box tubing deck support Makes for a stronger rigid deck
Fully welded deck Robotic welded. Adds additional strength.
Extended cutter front For increased material flow and added protection.
Round back design Helps discharge grass better than enclosed or partially enclosed cutters.
7 1/4" Deck height on RCR1860
8 7/8" Deck height on RCR1872		 Allows cutter to handle heavy cutting conditions.
1 1/2" to 13" RCR1860 Cutting height
1 1/2" to 11 1/2" RCR1872 Cutting height		 Provides for a wide range of cutting conditions.
Full length skid shoes Provides sidewall reinforcement and full protection to bottom of sidewall.
1/2” x 3” Heat-treated free swinging blades Free swinging protects from obstructions. Heat-treated offers longer life.
Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper Standard round stump jumper slides over stumps, rocks and debris.
High blade tip speed
RCR1860 = 16,360 FPM
RCR1872 = 14,853 FPM		 Ensures clean cut.
15”Laminated tailwheel Laminated material is long lasting in rough conditions.
4” x 16” Solid rubber tailwheel Can’t go flat.
Heavy-duty spindle on tailwheel Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel assembly.
Guarding Protect against flying debris. Customer must choose to include chain or rubber on the front and rear. Rear Metal Band standard.
Driveline Holder Keeps driveline up out of dirt. Easier hook up of driveline.

Specifications

Model RCR1872
Machine Weight 737 lbs.
With laminated tailwheel, slip clutch drive-line, front rubber guards and rear
metal band.
Hitch Category l with floating clevis top link, Quick-Hitch ready
Cutting Width 72"
Overall Width 77"
Overall Length 110"
Deck Height
(Bottom of Deck to Bottom of Skid Shoe)		 9"
Cutting Height 1 1/2" to 11 1/2"
Cutting Capacity 2" Diameter
Recommended Tractor PTO HP 20-65 HP
PTO Speed 540 RPM
Gearbox 1:1.46 Speed-up beveled gears
Cast iron housing
Gearbox Oil Capacity & Lubricant 4 Pints of EP 80-90W oil
Deck Material Thickness 10 Ga. (.134")
Side Skirt Material Thickness 10 Ga. (.134")
Deck Construction All welded deck
Skid Construction Full length welded on
Stump Jumper Round pan 10 ga. x 24" with blade holder bar
Blades (2) 1/2" x 3" Heat treated alloy steel
Free-swinging high lift - low friction
Blade Bolts Keyed with harden flat washers & lock nuts.
Blade Tip Speed 14,955 FPM
Drive-line ASAE Category 3 shear-bolt or 2-plate slip-clutch
Drive-line Protection Optional - Center shear-bolt protection
Optional - Center bolt 2 plate slip clutch
Tailwheel Mount Assembly Welded A-arm and caster fork with 360 degree swivel
Tailwheel 4" x 8" x 15" Laminated tire with cast iron hub or 4" x 16" molded rubber tire
Front Guard Optional: Rubber Belting
Accessory: Chain Guard
Rear Guard Standard: Metal Band
Optional: Rubber Belting
Accessory: Chain Guard
