Land Pride RCR1548

New / Land Pride / Rotary Cutters / RCR15 Series Rotary Cutters / RCR1548

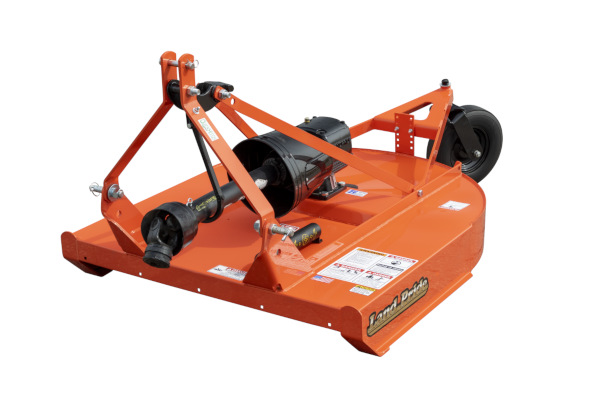

Land Pride RCR1548 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride RCR1548 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

FEATURES BENEFITS
Surpassed rugged industry standards All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.
Cat. 3 driveline with shear- bolt Shear bolt offers maximum driveline protection.
Cat. 3 driveline with 2-plate slip-clutch Slip-clutch driveline offers convenience for continual work.
Floating top link Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors.
Fully welded deck Robotic welded. Adds additional strength.
Round back design Helps discharge grass better than enclosed or partially enclosed cutters.
Cutting Height 1" - 9" cutting height for wide range of cutting conditions.
Full length skid shoes Provides sidewall reinforcement and full protection to bottom of sidewall.
1/2” x 3” Heat-treated free swinging blades Free swinging protects from obstructions. Heat-treated offers longer life.
Splined blade bar hub Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper Allows cutter to slide over obstructions protecting the gearbox output shaft.
High blade tip speed Ensures clean cut.
42" = 11,459 fpm
48" = 13,090 fpm
Laminated tailwheel Laminated material is long lasting in rough conditions.
Solid rubber tailwheel Can’t go flat.
Heavy-duty spindle on tailwheel Tailwheels take a beating, 1 1/4” spindle gives the strength to protect tailwheel assembly.
Guarding Protect against flying debris. Customer can choose to include rubber on the front and rear.
Driveline holder Keeps driveline up out of dirt. Easier hook up of driveline.

Specifications

Model RDR1548
Implement weight
(with front guard)		 424 lbs.
Hitch Category 1 & Category 1 limited, Quick Hitch ready
Cutting Width 47 1/2"
Overall Width 53 1/2"
Overall length
Iincluding tailwheel)		 91 3/4"
Deck height
(Bottom of deck to bottom of skid shoe)		 7 1/4"
Cutting height 1 3/4" - 11 1/2"
Cutting capacity 2" (Grass, weeds & light brush)
Recommended tractor hp 20-60 HP
Power take-off speed 540 RPM
Gearbox hp rating 65 HP
Gearbox with speed up beveled gears 540 input rpm gearbox
1:1.93
Cast iron housing
Gearbox oil capacity & lubrication 4.5 Pints of gear lube 80-90w EP
Deck construction One piece reinforced deck
Deck material thickness 12 Gauge
Skids shoes 1/4" X 2" Weld-on
Stump jumper Round pan
10 ga. x 24"
Blades (2) 1/2" x 3" Heat treated alloy steel
Free-swinging blades
Blade bolts Keyed with harden flat washer and lock nut
Blade tip speed 13,090 fpm
Drive-line ASAE Category 3
Drive-line protection Standard 1/2" center shearbolt protection
Optional - Center bolt 2 plate slip clutch
Tailwheel 4" x 16" Solid rubber tire
Safety guards (Optional) Rubber (front and rear)
