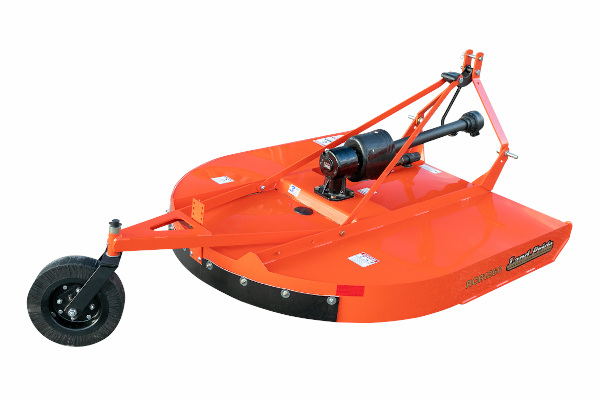

Land Pride RCR1260

Double tap to zoom

FEATURES	BENEFITS
Surpassed rugged industry standards	All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures specified by ANSI.
Tractor HP range	18 - 60 HP
Cat. 3 driveline with shearbolt	Shear bolt offers maximum driveline protection.
Cat. 3 driveline with 2-plate slip-clutch	Slip-clutch driveline offers convenience for continual work.
Floating top link	Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors
Round back design	Helps discharge grass better than enclosed or partially enclosed cutters.
1 1/4” - 10” Cutting Height	Cutting height for wide range of cutting conditions.
Skid shoes (Accessory) RCR1260 & RCR1272 only	Provides sidewall reinforcement and helps protect bottom of sidewall.
1/2” x 3” Heat-treated free swinging blades	Free swinging protects from obstructions. Heat-treated offers longer life.
Splined blade bar hub	Allows for tight positive fit of stump jumper and blade bar to gearbox output shaft.
10 Gauge stump jumper	Allows cutter to slide over obstructions protecting the gearbox output shaft.
High blade tip speed	Ensures clean cut.
Laminated tailwheel	Laminated material is long lasting in rough conditions and can’t go flat.
Heavy-duty spindle on tailwheel	1 1/4” spindle gives the strength to protect tailwheel assembly.
Rubber guarding	Protect against flying debris.
Metal Guarding	Protects against flying debris.

Model	RCR1260
Weight (With front & rear guard, shear bolt drive-line & laminated tire)	496 lbs.
Hitch	Category l (Quick hitch ready)
Cutting Width	60"
Overall Width	64 1/4"
Overall Length (Including Tailwheel)	97 3/4"
Deck Height	7 1/4"
Cutting Height	1 1/4" - 10"
Cutting Capacity	Grass, weeds & light brush
Recommended Tractor HP	20-60 hp
PTO Speed	540 rpm
Gearbox Rating HP	60 hp
Gearbox (Speed up beveled gears)	1:1.93 Speed-up Cast iron housing
Gearbox Lubrication & Capacity	1.9 Pint (.9 L) With new Comer gearboxes - 1.1 Pint (0.52 L) of gear lube 80-90W EP
Deck Construction	1 Piece reinforced deck
Deck Material Thickness	12 Gauge
Skids	1/4" (Welded on deck)
Skid Shoes	Bolt-on replaceable skid shoes (Sold separately through parts department only)
Stump Jumper	Round Pan 10 ga x 24"
Blades (2)	1/2" x 3" Heat treated alloy steel Free-swinging blades
Blade Bolts	Keyed with harden flat washer and lock nut
Blade Tip Speed	16,536 fpm
Drive-line	ASAE Category 3
Drive-line Protection Options	1/2" Center shear bolt protection or center bolt 2 plate slip clutch
Tailwheel	4" x 8" Laminated tire and yoke
Safety Guards	Rubber (standard front and rear)

RCR12 Series Rotary Cutters RCR1260
