Land Pride RCF3010

New / Land Pride / Rotary Cutters / RCF3010 Series Rotary Cutters / RCF3010

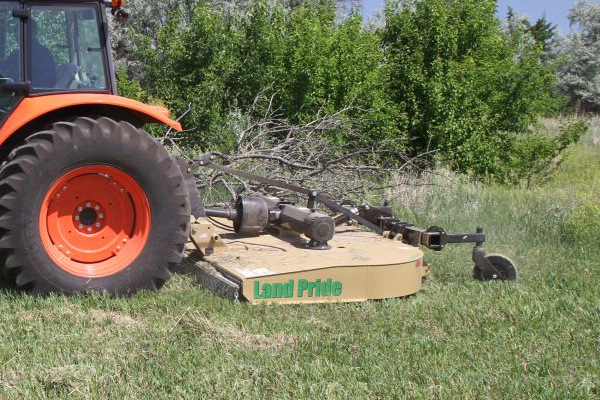

Land Pride RCF3010 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride RCF3010 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

FEATURES BENEFITS
Surpassed rugged industry standards All Land Pride Cutters have been designed and tested and meet rigorous voluntary testing procedures.
540 or 1000 RPM Fits wider variety of tractors.
High Gearbox HP rating Gearboxes are built rugged. See Specifications for actual Gearbox HP ratings.
3 Gearboxes Allows equal torque to be spread to left and right gearbox.
Splined rubber flex-couplers between the center and outboard gearboxes Protects the driveline and gearboxes from hard objects in the blade path.
Pull-type unit Constant velocity driveline U-Joint option (RCF3010 only) Reduces chatter and extends life of U-joint during turns.
Slip-clutch protection on main driveline Slip-clutch is more convenient than shear-bolt, protects gearbox against sudden impact.
8'- Cat. 1 & 2 or 10'- Cat. 2 & 3 3-Point & Semi-mount Hitches or Pull-type Hitch Fits a wide range of tractors. Semi-mount and Pull-type fit older tractors without a top link and smaller tractors without enough lift capacity.
10 Gauge deck, fully welded Fully welded deck adds rigidity.
1/4" Thick sidewalls Protects sidewalls from thrown objects.
Round back design Allows for cleaner and efficient discharge of material, helps eliminate damage to rear corners by not sticking out.
Pull-type w/dual leveling rods Dual leveling rods eliminate deck twisting when going over uneven terrain.
Chain or rubber guard option Reduces flying debris.
Full length skids with replaceable shoes Adds reinforcement to side panels. Replaceable shoes allow for change before wearing through to weld-on piece.
Splined blade hub Splined blade hub offers tight non-slipping attachment to output shaft.
3/16" Round stump jumper Standard stump jumper aids in sliding over obstructions, which helps protect gearbox output shaft.
1" x 4" Blade bar Heavy-duty blade bar adds support to stump jumper as well as gearbox output shaft.
1/2" x 4" Heat-treated blades Heat-treated blades last longer than non-heat-treated blades.
2 1/2" Diameter cutting capacity Aids in cutting brush.
High blade tip speed Means cleaner cutting. See Specifications for actual blade tip speeds.
Laminated tires Laminated tires can handle almost any condition and don’t go flat.
Quick-Hitch adaptable 3-point and semi-mount are Quick-hitch adaptable.

Specifications

Model Numbers RCF3010 (540 rpm)
RCFM3010 (1000 rpm)
Machine weight with front & rear
rubber guards. Includes hydraulic
cylinder & 21" wheels with
semi-mount and pull type units		 3-Point mount = 2,004 lbs.
Semi-mount =2,042 lbs.
Pull-type = 2,214 lbs.
Hitch 3-Point & semi-mount Category 2 & 3
Quick Hitch Adaptable
Pull-type - with dual self level rods
Pull type tongue weight 983 lbs
Park jack Park jack attaches to the tongue of the pull type cutter
Cutting width 10' - 0"
Overall width 10' - 6 1/2"
Overall length 3-point mounted
semi-mounted
pull-type		 10' - 2"
10' - 2"
13' - 1"
Deck height 11 1/2"
Cutting height 2" - 12"
Cutting capacity 2 1/2"
Tractor Hp rating Lift-type - 60 - 110
Pull/semi - 50 - 110
Gearbox horsepower rating T-box - 160 hp, outboard 110 hp
Gearbox 540 rpm or 1000 rpm gearbox
Cast iron housing, beveled gears
Gearbox input / output shaft size Input shaft = 1 3/4" - 20 spline
Output shaft = 2" dia.
Gearbox lubrication 80-90w EP gear lube
Gearbox oil capacity end boxes
T-box		 Comer = 6 pints
Comer = 4.5 pints
Deck material thickness 10 gauge
Deck side skirt thickness 1/4"
Skids Replaceable
Stump jumper 2 ea. - 3/16" Round pan
Blades (4) 1/2" x 4" Heat treated
Free-swinging suction blades
Blade bolts Keyed with harden flat washer and locknut
Blade tip speed 540 rpm 17,100 fpm
1000 rpm 17,300 fpm
Driveline 3-point & semi-mount
pull type		 ASAE Cat 4
ASE Cat. 4 equal angle shaft or constant velocity u-joint
Driveline protection 540 rpm - 4 plate slip clutch
1000 rpm - 2 plate slip clutch
Rubber flex coupler to wing boxes
Tailwheel options
3-point without rear axle: 2 tires
3-point with rear axle: 2 tires
semi-mount: 2 tires
pull-type w/single spindle: 2 tires
pull-type w/dual spindles: 4 tires
4" x 8" x 15 1/4" Caster laminated
4" x 8" x 15 1/4" Caster laminated or 6" x 9" x 21" caster laminated
4" x 8" x 15 1/4" Caster laminated or 6" x 9" x 21" caster laminated
6" x 9" x 21" Laminated or 24" x 7.7" recap foam filled aircraft or 29" x 16 ply aircraft
6" x 9" x 21" Laminated or 24" x 7.7" recap foam filled aircraft or 29" x 16 ply aircraft
Wheel bearings Tapered roller bearing in cast iron hub
Shock absorption Spring shock absorber on axle of semi-mount & pull type
Front guard Optional: Rubber deflector, single chain guard, or double chain guard
Rear guard Optional: Rubber deflector, single chain guard, or double chain guard
