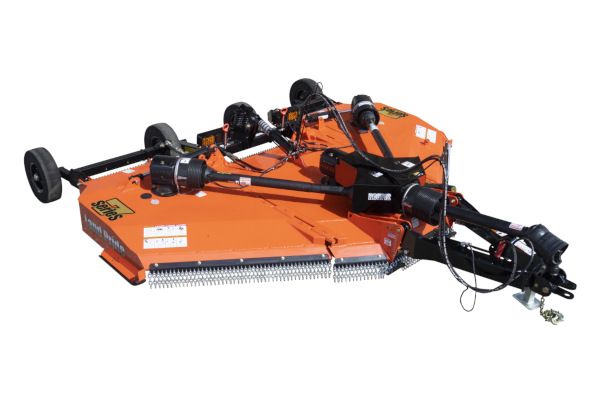

Land Pride RCM3712
Features
| Features | Benefits |
| Surpassed rugged industry standards | All Land Pride Rotary Cutters have been designed and tested and meet rigorous voluntary testing procedures according to ISO 4254-13. |
| Factory assembled | Arrives for quick and easy set-up. Minimal time wasted setting or prepping the unit. |
| Rugged heavy built gearboxes | Capable of handling heavy cutting applications. |
| Gearbox seal protection | Gearbox bottom seal protection for longer bearing life. |
| 2 Piece driveline shields | Driveline grease zerks are easier to access. |
| Low hitch weight on tractor drawbar | Ideal for smaller hp tractors by reducing the amount of weight on the drawbar. |
| Narrow A-frame hitch | Allows for a tighter turning radius. |
| Adjustable park jack angle | Park jack can be adjusted to be perpendicular to the ground. |
| Adjustable driveline hanger | Serves as support rest for the driveline when the cutter is unhooked from the tractor. Assist operator when attaching driveline to tractor power take-off shaft. |
| Input driveline: Cat. 6 CV | Driveline is matched just right for capacity of tractor. Constant velocity (CV) U-joint allows for 80 degree turns without doing damage to the driveline. |
| Drivelines with slip-clutches: Cat. 4 intermediate & Cat. 4 wings |
Driveline is sized right for the intended cutting capacity. Slip-clutches will slip under load to minimize twist damage to driveline profiles. |
| Zerks on end caps of cross journals | Intermediate and wing driveline cross journals are easier to grease. |
| High blade tip speed | Allows clean cutting of material. |
| 6" Blade overlap | Eliminates skipping during turns. |
| 3/16" Round stump jumper | Standard thick stump jumper material keeps damage to a minimum. |
| Smooth top design | Reduces accumulation of debris and is easier and faster to clean. |
| Top of decks are 100% welded | Makes center decks and wing decks stronger. |
| 1/4" Sidewall thickness | Increased thickness reduces damage from objects being thrown into deck sidewalls. |
| Beveled skid shoes on wings | Reduces gouging the ground when turning. |
| LED signal lights | LED lights are bright, long lasting, and resist vibration; unlike incandescent lights. |
| Hinged wing sections | Allows cutter to follow terrain. Ideal for rough ground where hillsides, ditches, and hollows can cause uneven cutting. |
| 1" Solid hinge rods | Larger diameter hinge rod gives greater strength to the cutter from front to rear, and in the hinge area itself. |
| Wing transport lock pins | Transport lock pins will hold wings in folded position in the event of hydraulic failure. |
| Enclosed dual 1" leveling rods | Cutter pulls equally on the rear axle while traveling over rough terrain. |
| 5-Bolt hubs | 5-Bolt hubs makes the wheel assembly more durable and longer lasting. |
| Drain holes in wheel rims | Allows water to drain from wheels mounted on folded-up wings. Helps prevent paint deterioration and rusting to the wheel rims. |
| Spring cushioned center-axle | Protects unit from bumps and ground shock. |
| Replaceable individual wheel spindles | Spindles can be replaced when damaged without replacing entire axle assembly. |
| Wheel options | Laminated tires: Eliminates flats. Air-filled tires: Give better cushion while transporting. Foam-filled tires: Give better cushion while transporting and can’t go flat. |
| LP Performance hitch option | Great for uneven terrain, reduces drawbar wear. Hitch pivots freely up and down and pivots about the tractor drawbar. |
| Bar-tite hitch option | Ideal for extreme conditions. Clamps tight to drawbar eliminating drawbar wear. |
| Maintenance free tongue & axle pivots | Self lubricating journal bearings make for less maintenance. |
| Color coded hydraulic hose handles | Easy hose identification & sturdy handle to easily connect & disconnect from tractor. |
| 4 lip purgeable metal backed wheel hub seal |
Seals make it harder for water & debris to enter the hub and grease to leave the hub. Metal backing prevents sticks and twine from destroying the seal lips. |
| Greasable cast steel continuous hinge | Cast steel hinges make a strong connection & are easy to lubricate. |
| Galvanized decks on RCG models | Durable rust protection for harsh conditions |
Specifications
| Specifications & Capacities | RCM3712 |
| Horsepower range | 50 - 160 |
| Gearbox horsepower | 540 rpm or 1000 rpm 160 hp Divider 130 hp Center & Wings |
| Gearbox lubrication | Gear Lube 80-90W EP |
| Gearbox oil capacity | Splitter: 3.5 pints; Center deck & Wings: 6 pints |
| Cutting capacity | 3" |
| Machine total weight Drawbar vertical load |
3,730 lbs. 1,240 lbs. |
| Blade tip speed At 540 rpm At 1000 rpm |
15,500 FPM 15,700 FPM |
| Hitch types | Fixed Clevis Hitch, LP Performance Hitch, Bar-Tite Hitch, Ball Hitch, or Pintle Hitch |
| Hitch jack | Standard (7,000 lbs.) |
| Signal lights 7 Pin connector |
LED SAE J560 pin configuration |
| Cutting width Overall width Transport width |
12'-0" 12'-10" 9’-4" |
| Overall length | 15'-3" (With center deck raised fully up) |
| Deck height | 11" |
| Cutting height | 1-1/2" - 14" |
| Lift hydraulics | 3" x 8" hydraulic cylinder, hoses, fittings & stroke control spacers |
| Wing hydraulics | 2 1/2" x 12" hydraulic cylinders, hoses & fittings |
| Wing transport protection | Wing transport lock pins |
| Deck material thickness | 10 Gauge |
| Side skirt thickness | 1/4" Steel |
| Skid shoes | Wing Deck: 1 Replaceable skid shoe per wing Center Deck: 2 Replaceable skid shoes |
| Blades - 6 (2 per carrier) | 1/2" x 4" Heat-treated, free-swinging alloy steel with uplift |
| Blade overlap | 6" |
| Blade bolt | Keyed with hardened flat washer & locknut |
| Stump jumper / blade holder | 3/16" Thick round dish shaped pan, reinforced with 1" x 4" blade bar |
| Front & rear guards | Optional single row chain or dual row chain |
| Input driveline 540 & 1000 rpm | Cat. 6 with constant velocity u-joint with or without overrunning clutch |
| Intermediate driveline | Standard - Category 4 with slip-clutch |
| Wing drivelines | Standard - Category 4 with slip-clutch |
| Wheel options | 21" or 26" Laminated tires, 25.5" New foam filled tires, 25.5" New aircraft tires without foam filling |
| Number of wheels | 4 - Wheel option: Two on transport axle and one on each wing axle 6 - Wheel option: Four on transport axle and one on each wing axle |
| Transport axle | Spring-cushioned on center transport axle |
| Hubs | Cast iron five-bolt hubs with tapered roller bearings and 1 3/4" shafts |
| Land Pride Performance hitch & Bar-Tite hitch pivot shaft diameter | 2 1/4" |
| A-frame tongue | 5" x 3" rectangular tubing |
