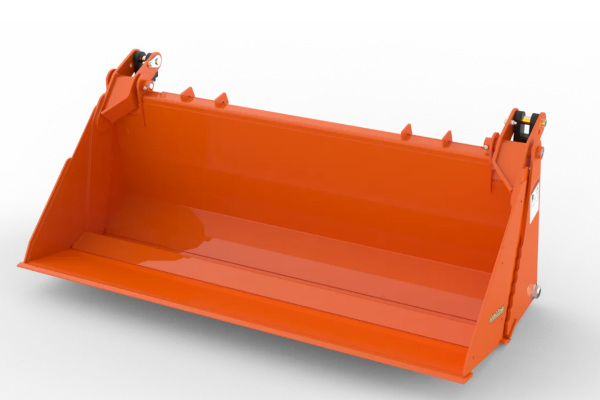

Land Pride CB1072

Double tap to zoom

Features	Benefit
Four-in-one bucket design	Can be used as a bucket, jaw, scraper, or dozer.
Designed to fit tractors with Universal Quick Attach hitch on front mounted loaders	Easy to attach.
Designed to protect hydraulic hoses	Hydraulic hoses routed to prevent pinching.
1" Pivot pins	Large diameter pins for extra strength.
Dual hydraulic cylinders	Allows upper jaw to grip the material better.
28 1/4" Clamshell opening	Large opening to handle bulky objects.
Reinforced bucket	Adds strength and rigidity to the bucket, clamshell, and dozer features of the four-in-one bucket.
Accessories & Options
Third Function Hose Kits For Kubota B & L Tractors	Can control all bucket and loader movements with a joystick. Provides easy hydraulic hose hook-up at the front of the loader.
Hydraulic Hose Kits	Complete the hydraulic connections between bucket and quick connect couplers supplied with the “Optional Third Function Valve Kits”. Hook-up is easy at the front of the loader.

Specifications & Capacities	CB1072
Tractor horsepower	40-65 hp (30-49 kW) maximum
Hitch type	Universal Quick Attach
Weight	389 lbs (176 kg) without 3rd Function Hose Kit
Overall width	73" (185 cm)
Clamshell opening	28 1/4" (72 cm)
Clamshell clamping force	3,000 lbs (1360 kg) at 2,250 psi (15.5 mPa) hydraulic pressure
Floor construction	10 ga. (3.4 mm) grade 80 steel
Side wall construction	3/16" (5 mm)
Bucket capacity (ft3)	9.33 ft3 (0.26 m3) struck and 12.96 ft3 (0.37 m3) heaped
Hydraulic cylinder pins	1" dia. rod pivot pins
Jaw pivot pins	1" dia. pivot pins
Hydraulic cylinders	Two 2" x 6" x 1 1/8" Rod
Maximum hydraulic pressure	2500 psi

CB10 Series Combination Bucket CB1072
