Land Pride RBT4596

New / Land Pride / Dirtworking / RBT45 Series Rear Blades / RBT4596

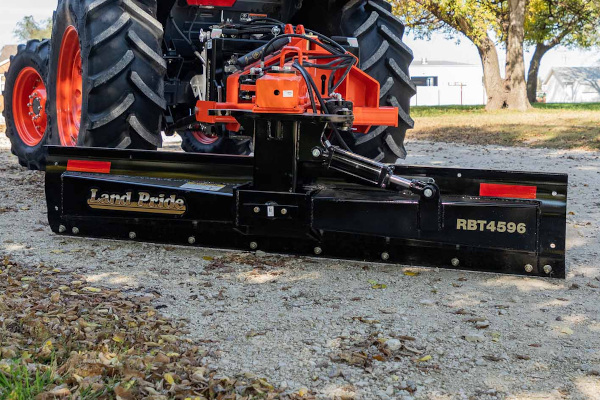

Land Pride RBT4596 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride RBT4596 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

FEATURES BENEFITS
96" & 108" Working widths Choice of two sizes to pick from. Both sizes handle large capacities.
70-125 hp range Fits a wide variety of tractors.
Cat. 2 and 3 Bushing provided to go from Cat. 2 to Cat. 3 enables a wider variety of tractors to be used.
Quick hitch compatible Compatible with Land Pride Quick hitch for easy attachment and removal. Increases productivity.
Blade angles left and right up to 45°in either direction (15 positions manually: Center, 7 clockwise and 7 counterclockwise) (Hydraulically: Any degree up to 45°) Allows operator to set the blade at the angle of his choice up to 45° to move the desired amount of material with satisfactory results.
Blade offsets left and right up to 35” (15 positions manually: Center, 7 positions left and 7 positions right) (Hydraulically: Any position up to 35”) Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings and abutments.
Blade tilts up and down up to 15° Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes.
Fully welded reinforced main frame Overall mainframe strength is enhanced due to being fully welded.
Heavy-duty pivot assembly with 4” solid steel kingpin 1” Plate steel turntable and 4” kingpin for handling the high amount of torque that can be transferred to this area.
Formed 19” moldboard with top lip reinforcement Formed moldboard with 90° bent top for additional strength. Tall moldboard allows for a great deal of material to be moved.
5/16” Moldboard with 1/4 ” reinforcement Heavy-duty moldboard to handle loads from 125 HP tractors.
Grease zerks at all pivot points Helps front pivot shaft maintain bind free movement.
Reversible cutting edge Lengthens blade life by being able to turn cutting edge over and use other edge.
Retractable parking stand Enables one person hook-up and keeps the mainframe off of the ground.
Skid shoes (optional) Skid shoes protect moldboard from hitting low-lying obstructions such as manhole covers.
End plates (optional) End plates allow the blade to hold material in to drag from one spot to another.
Cylinder cushion valve (optional) Cylinder cushion valve protects the cylinders and blade from sudden impacts by allowing hydraulic fluid to escape vs. blowing seals.
Single or dual gauge wheels (optional) Gauge wheels position the height of the blade to aid in grading.

Specifications

Model RBT4596
Blade width 96"
Approximate weight (lbs)
with hydraulic links		 1130 lbs
Maximum engine horsepower 125 hp
Maximum G.V.W. (lbs) 9500 lbs
Hitch type Cat. 2 & 3 (Fits Land Pride Quick Hitch)
Blade angle, hydraulic operated Up to 45° clockwise and counterclockwise with blade facing forward or reversed
Angle cylinder 4" X 16"
Blade offset, hydraulic operated Up to 35 inches left and right.
Offset cylinder 4" X 16"
Blade tilt, hydraulic operated Maximum 15° up and 15° down with blade facing forward or reversed
Tilt cylinder 3" X 6"
Moldboard height 19"
Moldboard thickness 5/16" with 1/4" boxed reinforcement
Cutting edge 1/2" x 6" Heat treated, Replaceable & Reversible (Double bevel)
Main frame Fully enclosed welded, formed box
Parking stand Retractable
Accessories Manual or Hydraulic Single or Dual Gauge Wheel,
Skid Shoes
End Plates
Double Selector Valve and Cushion Valve,
Manual Angling Link
Manual Offset Link
Manual Tilting Link
