Land Pride SA35

New / Land Pride / CE Attachments / SA35 Series Post Hole Diggers / SA35

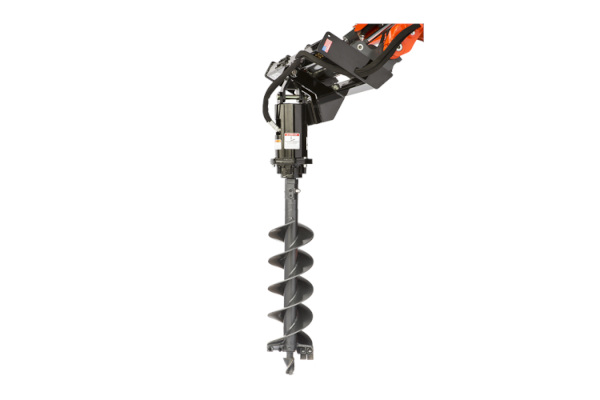

Land Pride SA35 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Land Pride SA35 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

Skid steer type quick attach that meets SAE Fits most Skid Steers
Easy hook-up and unhook capabilities.
Loader arms can be used to apply additional down force.
Maneuverability Skid Steer Post Hole Diggers are able to reach over fences or other obstructions.
Replaceable hardened steel points on auger Hardened points will last longer than non-hardened. Points are replaceable. Fish tail tips and steel point make it easier to start a hole.
SA35 Series Fits 10 – 30 gpm hydraulic systems
Output shaft options 2" Hex shaped output shaft, or 2 9/16" shaft. Both offer high torque resistance, with the hex shaft being the heaviest available.
Planetary gearbox Design is a tougher, more construction grade than chain and sprocket designed gearboxes. Boxes are completely sealed with all moving parts running in oil for constant lubrication.
Large selection of augers Variety of Dirt, Tree, and Rock Auger sizes and styles to suit many applications.
Large selection of Bolt-on Rock Heads (Accessory) Pengo Dirt Augers can be converted to Rock Augers with this accessory.
Auger length 46" on 9" Auger, 48" on all others.
Puff augers Available with 2" hex hub or 2 9/16" round hub. Used for drilling 2" rock T-post holes in tough conditions.

Specifications

Skid Steer Hydraulic Requirements 10 - 30 gpm @ 1500 to 3500 PSI
Hydraulic Motor 18.3 CID
Gearbox Hydraulically driven planetary gearbox; reversible
*Output Torque 2,732 ft-lbs based on 3,000 psi @ 20 gpm
Hitch Skid steer type quick attach that meets SAE
Weight without Auger 372 lbs.
Auger Length 9" Auger size = 49" All other auger sizes = 50 3/4"
Auger Flighting Thickness 5/16"
Auger Pipe 2 1/2" ID
Auger Teeth Forged, Individually Replaceable. 40 Degree angle installed on flat side and 50 degree angle installed on angled side
Number of Teeth Dirt Augers
6" - 2 teeth
9" & 12" - 4 teeth
15" - 5 teeth
18" - 6 teeth
24" - 8 teeth
30" - 10 teeth
36" - 12 teeth


Tree Augers
24" - 9 teeth
30" - 11 teeth
36" - 13 teeth



Rock Augers
6" - 6 teeth
9" - 10 teeth
12" - 12 teeth
15" - 14 teeth
18" - 16 teeth
24" - 20 teeth
 Number of Teeth Tree Augers
24" - 9 teeth
30" - 11 teeth
36" - 13 teeth
 Number of Teeth Rock Augers
6" - 6 teeth
9" - 10 teeth
12" - 12 teeth
15" - 14 teeth
18" - 16 teeth
24" - 20 teeth
Pilot Cast Steel, 3 -Drill Points
Cast Steel, 4 - drill points
Hex hub puff auger Part# .317-318A  2" Pilot bit x 2" hex hub x 38.7" overall length
RND hub puff auger Part# 317-318A 2" Pilot bit x 2 9/16" round hub x 38.7" overall length
Options and Accessories
Gearbox Output Shafts (Options)  2" Hex shaft or 2 9/16" round shaft
Auger sizes (Options). Dirt, 2" hex hub:                             6", 9", 12", 15", 18", 24", 30", & 36"
Dirt, 2 9/16" round hub:                  9", 12", 15", 18", 24", 30", & 36"
Tree, 2" hex & 2 9/16" round hubs:  24", 30" & 36"
Bolt-on Rock Head (Accessory) 6", 9", 12", 15", 18", & 24"
Auger Extensions (Accessories) 2" Hex extension: 24" & 48" Extensions Available
2 9/16" OD round extension: 24" & 48" Extensions Available
