Kubota WR1100

Model Photo

Double tap to zoom



Features

Wrapping at Storage Site

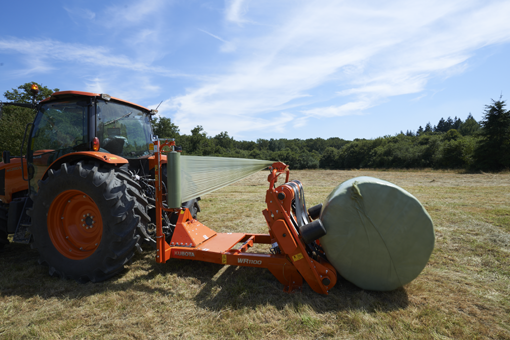

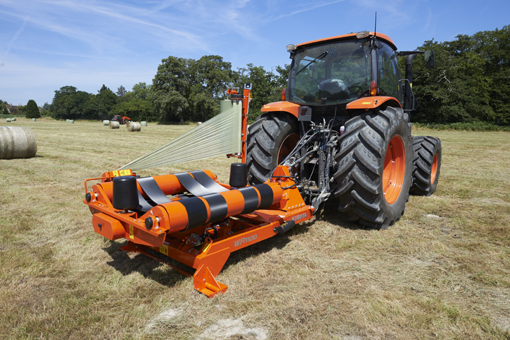

Kubota WR1100 series are three-point mounted wrappers with a simple but very reliable way of wrapping silage bales. When the bale is being transported to the storage site for wrapping, this three-point mounted version is the ideal solution. It can be mounted on the rear or front hydraulics of the tractor or used as a static machine with an external power pack unit.

Easy Operation

The entire wrapping process of the Kubota WR1100 can be controlled remotely from the loading tractor with the optional remote control. One operator can do the entire process of loading, wrapping and stacking. Once the wrapping process is activated with the push of a button, the whole operation runs automatically. Push the button again to unload the wrapped bale. An optional automatic stop ensures that the bale is properly wrapped.

Remote Control

The Kubota WR1100 is operated via computer controls with an integrated bale counter. A remote control is available as an option, making it the ideal solution for static use.

Specifications
Transport Length ft.Transport Length ft.9'
Transport Width ft.Transport Width ft.5.25'
Transport Height in.Transport Height in.69"
Weight lbs. (kg)Weight lbs. (kg)1653
Max Bale Size (L x D) in.Max Bale Size (L x D) in.47" x 50"
Max Bale Weight lbs.Max Bale Weight lbs.2650
Mounted WrapperMounted WrapperStandard
Pull-Type WrapperPull-Type WrapperNot Available
Support Rollers/Belts (number)Support Rollers/Belts (number)2/4
Automatic Film CutterAutomatic Film CutterStandard
Max. Wrapping Speed rpm.Max. Wrapping Speed rpm.30
1 Pre-Stretcher 750mm1 Pre-Stretcher 750mmStandard
Pre-Stretcher 29.5" (750mm)Pre-Stretcher 29.5" (750mm)Standard
Manual Cable Control (M)Manual Cable Control (M)Not Available
Electro Hydraulic Joystick (J)Electro Hydraulic Joystick (J)Not Available
Programmable Computer (C)Programmable Computer (C)Standard
Remote Control (C)Remote Control (C)Optional
Oil Consumption (l/min)Oil Consumption (l/min)28
Wheels and Axles | 10.0/80-12Wheels and Axles | 10.0/80-12Not Available
Fill Roll MagazineFill Roll MagazineNot Available
Adapter Kit for 20" (500mm) Film SpoolAdapter Kit for 20" (500mm) Film SpoolOptional
Bale and Wrap CounterBale and Wrap CounterStandard
Auto-Stop at End of Wrapping CycleAuto-Stop at End of Wrapping CycleStandard
Film End/Tear Sensor (C)Film End/Tear Sensor (C)Optional
Road LightsRoad LightsNot Available
