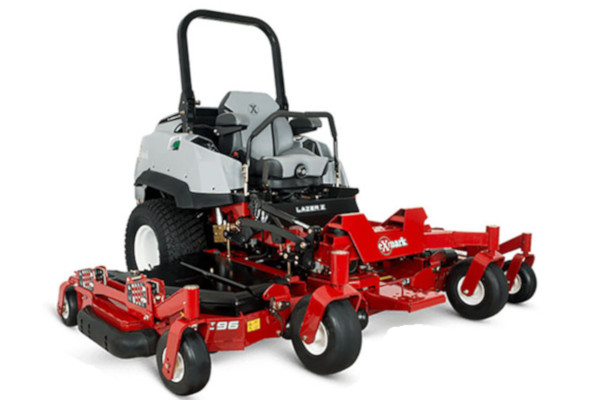

Exmark LZS88CDYM96RW0
Double tap to zoom
LAZER Z DIESEL WITH RED TECHNOLOGY LZS88CDYM96RW0
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.
Share This Product:
Features
The next generation RED leverages the latest technologies to deliver increased machine efficiency, ease of use and durability. This technology provides users an increased ability to control mower power and efficiency with defined performance modes.
Specifications
| Equipment | |
| blades Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver. |
| Drive Tires | 26x12-12, 6ply Multi Trac® |
| Cup Holder | Standard |
| Tractor Frame | Welded, heavy-duty 1.5" x 3" x 3/16" tubular steel. |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft., also adjustable to 2 height positions. Adjustable dampeners (3 positions) to customize drive responsiveness. |
| Front Caster Tires | 15 x 6.0-6, smooth-tread, semi-pneumatic. |
| Parking Brake | Lever-actuated internal wet disc brake. |
| Seat | Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
| Electrical | 12-volt battery with 55-amp alternator. |
| Power Components | |
| Engine Brand | Yanmar |
| Engine Model | 3TNV88C |
| Engine Displacement | 1,642 |
| Engine Series | TNV |
| Engine Type | Common Rail Diesel |
| Engine Speed | 3,000 RPM |
| Air Filter | Heavy-duty canister air filtration system with electronic vacuum sensor |
| Fuel Type | Diesel |
| Fuel Capacity | 12-gallon (45.4-L), side fuel tanks |
| Fuel Indicator | Yes - mechanical float type |
| Drive | Hydro-Drive |
| Drive Description | Kanzaki KPS-18T Transmission, 15-quart oil capacity, spin-on filter. 18 cc shoe type pumps and 17.84 cubic inch Hydro-Gear HGM-H motors, hydraulic oil cooler. |
| Speed | Infinitely variable speed selection from 0–12.5 mph (20 kmph) forward, 0–7 mph (11 kmph) reverse. |
| Carb Compliant | Yes |
| Deck Lift | Hydraulic |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| PTO Engagement | Integrated wet clutch system in transmission, connected to right angle gearbox on deck via drive shaft |
| Drive Wheel Release | Allows unit movement without engine running. |
| Casters | .50" thick caster yoke arms. |
| Decks | |
| Width / Cutting Deck | 96" |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with finish cut baffles installed. |
| Deck Construction | 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt. |
| Blade Tip Speed | Approximately 18,100 fpm |
| Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments. |
| Blades | 4 Blades at 24.50" Length |
| Dimensions | |
| Width | 101.2 in. (257.0cm), 72.5 in. @ 3 in. HOC when folded |
| Length | 97.3 in. (247.9 cm) |
| Height | 72.5 in. (244.6 cm) |
| Curb Weight | 2584 |
Accessories and Attachments
Rear Guard and Bumper Kit
Finish Cut Baffles
Finish cut baffles (96)
Sun Shade (ROPS)
Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Jack Mount Receiver
RECEIVER-JACK MOUNT - Lazer Diesel
Light Kit (not compatible with 135-2473)
Hitch Kit
Hitch kit (NLZD)
White Non-Marking Side Bumper(requires 3231-7 & 104-8301)
Perfect for restricted and sensitive mowing areas, these durable bumpers eliminate the marking left behind by incidental contact.
Jack
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Flasher Light Kit
Slow Moving Vehicle Sign Kit
Slow moving sign kit (NLZD)
