Exmark LZX980EKC96RW0

New / Exmark / Electronic Fuel Injection (EFI) Mowers / Lazer Z EFI / Lazer Z X-Series EFI / LZX980EKC96RW0

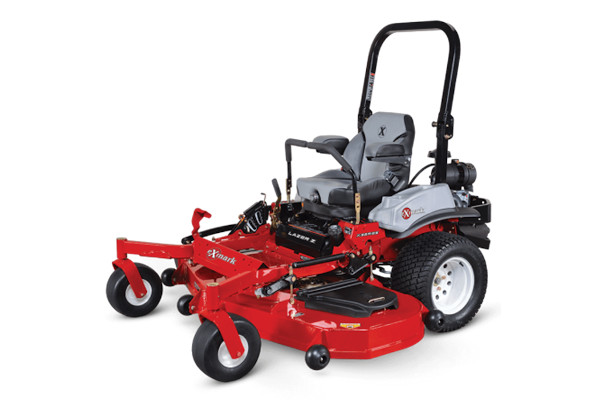

Exmark LZX980EKC96RW0 for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Exmark LZX980EKC96RW0 for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

Eco-Friendly

Reduces fuel consumption, fewer emissions and carbon footprint.

Fuel Savings

Delivers up to 25% in fuel savings.

Reduce Green House Gases

Fuel saved directly correlates to reduced harmful exhaust emissions, including green house gases.

Easy to Start

Easy start in any altitude or climate condition (no manual choke).

Engine Efficiency

Closed loop (with O2 sensor) monitors combustion and keeps engine running at optimum levels.

Sequential Fuel Injection

Delivers the precise amount of fuel and spark where needed to maximize efficiency and power.

Specifications

Model LZX980EKC96RW0
Equipment
Blade Spindles No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 30 mm (1.18") diameter spindle shaft and splined blade driver.
Drive Tires 24 x 12.0-12, 4 ply Turf Master®
Tractor Frame Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
Steering Control Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions.
Front Caster Tires 13 x 6.5-6, smooth-tread, semi-pneumatic.
Parking Brake Lever-actuated disc brake.
Seat Deluxe, two-tone, bolstered suspension seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up.
Electrical 12-volt battery with 15-amp alternator.
Standard Features Engine hour meter and cup holder
UPC 1.93308E+11
Power Components
Engine Brand Kohler
Engine Model ECV980
Engine Displacement 999
Engine Series Command Pro™ EFI
Engine Speed 3,650 RPM
Air Filter Heavy-duty canister air filtration system
Fuel Type Gas EFI
Fuel Capacity 12-gallon (45.4-L), single fuel tank with single fill location.
Fuel Indicator Yes - electronic Sender
Drive Hydro-Drive
Drive Description Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 16 cc pumps and 17.1 cubic inch motors.
Engine 38 hp*
Speed Infinitely variable speed selection from 0-10.5 mph (16.8 kmph) forward, 0-7.0 mph (11.3 kmph) reverse
Carb Compliant No
Deck Lift Electric over hydraulic push button control
Safety Package Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS 2-post foldable ROPS standard with seat belt and latch.
PTO Engagement MagStop electromagnetic 250-ft-lb clutch with spot brake
Drive Wheel Release Allows unit movement without engine running.
Casters .50" thick caster yoke arms.
Engine Spec 3018
Decks
Width/Cutting Deck 96"
Deck Style Floating Deck
Deck Style Description Full-floating UltraCut Rear Discharge Deck. Rear-discharge standard with option to mulch.
Deck Construction 7-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge high strength alloy side skirt.
Blade Tip Speed Approximately 18,500 fpm.
Cutting Heights 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat.
Blades 4 Blades at 24.50" Length
Dimensions
Width 101.3 in. (257.0 cm), 72.5 in. @ 3 in. HOC when folded
Length 95.8 in. (243.3 cm)
Height 70.5 in. (179.1 cm)
Curb Weight 2200

Accessories and Attachments

Light Kit (not compatible with TC26)

12-Volt Power Port

Floor Mat

Keep your Lazer looking its best by protecting the floorpan from scuffs and dirt. Fits all Lazer models (model year 2009 and higher).

Sun Shade (ROPS)

Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)

Hydro Maintenance Kit

Kit includes: 1 gallon jug of Exmark® Premium Hydraulic Oil and 2 Hydro Filters (Replaces 116-3270)

Harness Add-On Accessory Kit

Take the hassle out of dual accessory fit up with this add-on harness.

KIT 96 RD Baffle

Jack Mount Receiver

RECEIVER-JACK MOUNT - Lazer Diesel

White Non-Marking Side Bumper(requires 3231-7 & 104-8301)

Perfect for restricted and sensitive mowing areas, these durable bumpers eliminate the marking left behind by incidental contact.

Flasher Light Kit

Jack

Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).

Extended Drive Lever Kit

Improve your elbow room while you operate with extended drive levers.

Black Side Bumper(requires 3231-7 & 104-8301
