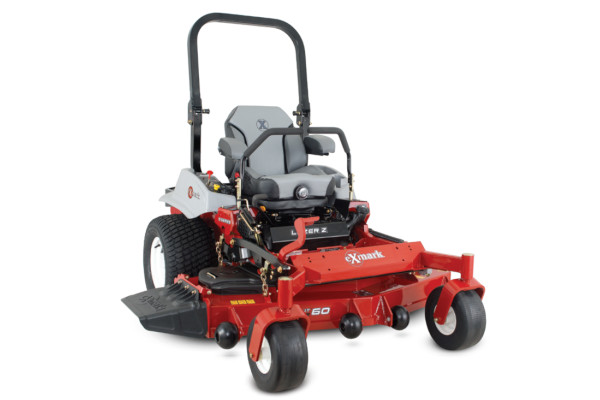

Exmark LZS740PKC60400
Features
Eco-Friendly
Reduces fuel consumption, fewer emissions and carbon footprint.
Fuel Savings
Delivers up to 25% in fuel savings.
Reduce Green House Gases
Fuel saved directly correlates to reduced harmful exhaust emissions, including green house gases.
Easy to Start
Easy start in any altitude or climate condition (no manual choke).
Engine Efficiency
Closed loop (with O2 sensor) monitors combustion and keeps engine running at optimum levels.
Sequential Fuel Injection
Delivers the precise amount of fuel and spark where needed to maximize efficiency and power.
Specifications
| Equipment | |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft and splined blade driver. |
| Drive Tires | 24 x 12-12, 4 ply Turf Master® |
| Cup Holder | Standard |
| Tractor Frame | Unibody, welded, heavy-duty 1.5" x 3" tubular steel. |
| Steering Control | Hydraulically dampened twin levers, adjust fore and aft. Adjustable dampeners (3 positions) to customize drive responsiveness. Also adjustable to 2 height positions. |
| Front Caster Tires | 13 x 6.5-6, smooth-tread, semi-pneumatic. |
| Parking Brake | Lever-actuated disc brake. |
| Seat | Deluxe, two tone, bolstered seat with Elastomeric Vibration Control material. Mounted on innovative Seat Isolation System that provides operator isolation in all three planes of motion as well as fore-aft slide and seat flip-up. |
| Electrical | 12-volt battery with 20-amp alternator. |
| Onboard Intelligence | Smart Controller |
| Power Components | |
| Engine Brand | Kohler® |
| Engine Model | PCV740 |
| Engine Displacement | 747 |
| Engine Series | Command™ EFI Propane |
| Engine Type | EFI Propane |
| Engine Speed | 3,750 rpm |
| Air Filter | Heavy-duty canister air filtration system |
| Fuel Type | Propane EFI |
| Fuel Capacity | 43.5-lb propane tank |
| Fuel Indicator | Yes - Float Gauge |
| Drive | Hydro-Drive |
| Drive Description | Two Exmark exclusive Parker unitized pump and wheel motor systems with no hoses, integrated cooling fans, shock valve, 1.7-quart integrated reservoir, spin-on filter and heavy-duty components. 12 cc pumps and 14. 5 cubic inch motors. |
| Speed | Infinitely variable speed selection from 0-10.0 mph (16 kmph) forward, 0-6.0 mph (9.7 kmph) reverse. |
| Carb Compliant | Yes |
| Deck Lift | Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position. |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators. |
| ROPS | 2-post foldable ROPS standard with seat belt and latch. |
| PTO Engagement | MagStop electromagnetic 200-ft-lb clutch with spot brake |
| Drive Wheel Release | Allows unit movement without engine running. |
| Casters | .50" thick caster yoke arms. |
| Decks | |
| Width / Cutting Deck | 60" |
| Deck Style | Floating Deck |
| Deck Style Description | Full-floating UltraCut Series 4. Side discharge standard, with molded discharge chute and option to bag or mulch. |
| Deck Construction | 10-gauge top that is formed and continuously seam welded, 7-gauge side skirt and 7-gauge formed and welded spindle mounting locations for improved strength and reduced weight. |
| Blade Tip Speed | Approximately 18,500 fpm. |
| Cutting Heights | 1.0" (2.5 cm) to 5.5" (11.8 cm) in 0.25" (0.64 cm) increments adjustable from operator's seat. |
| Blades | 3 Blades at 20.50" Length |
| Dimensions | |
| Width | 72.8 in. (184.9 cm) |
| Length | 83.1 in. (211.1 cm) |
| Height | 70 in. (177.8 cm) |
| Curb Weight | 1283 |
Accessories and Attachments
Sun Shade (ROPS)
Easily mounts to Rollover Protection System (ROPS). Made of heavy-duty, water- repellent canvas for maximum durability. Easily removable for transport. Fits all Lazer Z and Pioneer models. (Does not fit Quest.) (Replaces 116-0513)
Custom Ride Seat Suspension System
A great value in comparison to more expensive full-suspension seats, our CustomRide suspension system easily mounts to your existing EVC operator seat. System features enable operator to customize suspension settings to their individual weight and personal preference. Fits Lazer Z models.
Light Kit
Keep mowing after the sun goes down with brilliant, 27-watt halogen power from this Hella® Work Lamp Kit. Easily mounted to your ROPS bar, the highly durable lenses repel dust, withstand impact, and can even take on high- pressure cleaning. With twice the illumination output of a conventional work lamp, the kit also features a pivot base and easy bulb replacement.
Power Deck Lift
Change your deck from any cutting height to the transport position quickly and easily, with a convenient foot pedal actuator switch that lets you keep your hands safely on the drive levers. Created specifically for your 48-72" cutting deck Lazer Z, its electronic motor features Exmark's signature durability and a low-profile design that leaves plenty of trailer space.
Floor Mat
Keep your Lazer looking its best by protecting the floorpan from scuffs and dirt. Fits all Lazer models (model year 2009 and higher).
Jack Mount Receiver
Safely access the underside of your zero-turn mower’s deck. Used with Exmark's Bulldog jack (p/n 127-6666 sold separately) attaches for smooth lift without hassle or strain, thanks to its comfortable, ergonomic design. Built for years of reliability.
UltraVac Quick Dump Collection System
The UltraVac X-Series discharges grass quickly with one simple motion of the release lever. With commercial-grade steel and polyethylene hopper Get the job done efficiently with rear-discharge door, and 11 bushel capacity.
Hydro Maintenance Kit
Kit includes: 1 gallon jug of Exmark® Premium Hydraulic Oil and 2 Hydro Filters (Replaces 116-3270)
Wiring Harness Relay
Micro-Mulch System
The aerodynamically designed deck, baffles and blades create airflow patterns that circulate leaves and grass for repeated cuttings and even dispersal deep into the turf. Mulching baffles also keep the underside clean, which reduces grass buildup and clumping.
3-Bushel Bagger
Lightweight and easy to attach, this 3-bushel grass catcher fits all Exmark Lazer Z, Pioneer, Radius, Vantage* and wide-area walk-behinds. (*Not available for Vantage Propane models.)
Harness Add-On Accessory Kit
Take the hassle out of dual accessory fit up with this add-on harness.
Light Kit (not compatible with TC26)
Turf Striping Kit
Fits 48", 52" and 60" models. Customize your property with consistent and professional striping using a smooth operating roller design. Installs quickly, using existing mounting points, and easily adjusts for varying cutting height settings. Does not affect your ability to get up and over curbs.
UltraVac Completing Kit
KIT, UV DRIVE 604 PROPANE
Hitch Kit
Enables owners to add attachments to their mowers to increase productivity by towing light implements and yard carts.
Full Suspension Seat
This low-profile, full- suspension seat enhances operator comfort and lumbar support by adjusting to individual weight.
Extended Drive Lever Kit
Improve your elbow room while you operate with extended drive levers.
12-Volt Power Port
Jack
Easy to use, 15" stroke Bulldog jack, gives you plenty of room to change blades or perform routine deck cleaning (jack mount receiver not included).
Operator Controlled Discharge (Foot) (C1 needs 135-0100)
The infinitely adjustable blocker door opens and closes by using the convenient foot pedal, allowing the operator to quickly control discharge when mowing around parked cars and windows. Easily installs and removes without tools. (C1 needs 135-0100)
Trash Container (Not compatible with 135-7320)
Conveniently located within easy reach of the operator, this trash container features a 2.5-gallon capacity and durable, easy-to-clean mesh receptacle. See dealer for fit- up information.
Anti-Scalp Roller Kit
Protect the trim side of your Lazer 60" UltraCut deck with this Anti-Scalp Roller kit. Fits Lazer 604 decks model year 2009 and above.
UltraVac 3-Bag Collection System
The UltraVac S-Series enables you to switch between bagging and side discharge with quick-attach capability. Avoid clogging with larger diameter tubes. Compact design minimizes trailer space for easy maneuverability. Sealed hood reduces dust.
Equipment Cover
Protect your zero-turn mower from the elements with this sturdy, waterproof cover. It’s constructed from tough 600-denier polyester, making it abrasion- and tear- resistant. Its elastic opening provides a secure, snug fit.
Air Ride Suspension Seat
Designed to fit all Lazer Z models, the new air ride seat gives you the best comfort available. Sophisticated air suspension technology virtually eliminates any bumps, jarring or vibration your property delivers.
Tractus Tire
The Tractus airless tire and wheel combination is available as an accessory for select 60" Lazer Z zero-turn models. Tractus eliminates flat tires, increases traction and offers longer service life.
