Echo CHF9540H - 9 Inch PTO Fine Chipper

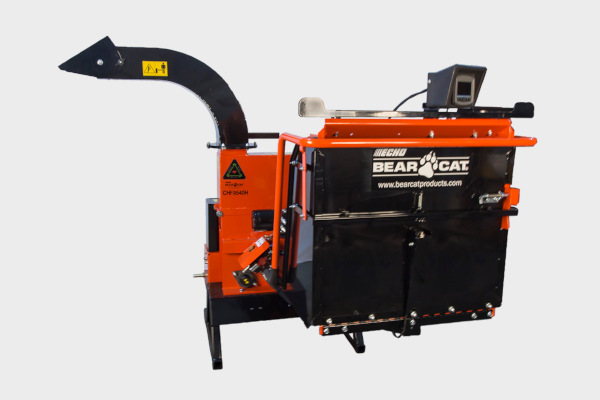

Echo CHF9540H - 9 Inch PTO Fine Chipper for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Echo CHF9540H - 9 Inch PTO Fine Chipper for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

This 9 inch Capacity Orchard Chipper has 16 reversible chipper blades that produce some of the smallest chips in the industry. With a low profile discharge, it places chips directly onto the ground. Auto-feed speed control system is a standard factory-installed feature on this machine. The hinged service cover allows easy access for maintenance and clean up.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 35 hp to 60 hp

Specifications

Chipper
Chute Opening (In.): 30 x 31
Chipping Blades: 4 Reversible Heat-treated
Rotor Size/Weight: 30"x 1.25"/275 lbs.
Max Chipping Capacity: 9''
Feed System: Hydraulic
Hydraulic Controller: DDC System

Dimensions
L x W x H: 70'' x 61'' x 63''
Weight: 1,460 lbs.
Chute Throat: 9'' x 9''

Engine
PTO Input Power Range: 35-60 hp
PTO Capable: Yes
Drive Type: Triple-Banded Belt
