Echo CH9540HPXT

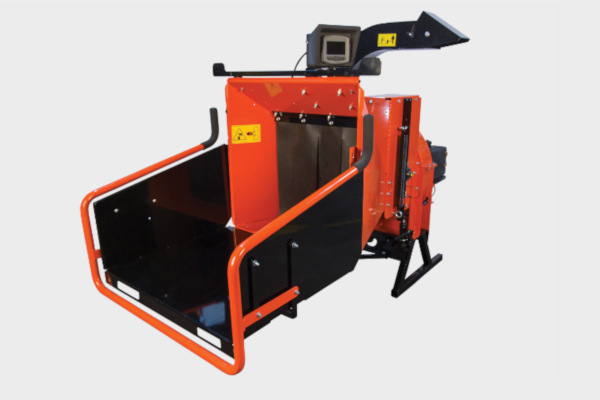

Echo CH9540HPXT for sale at Pillar Equipment, Quad Cities Region, Illinois

Double tap to zoom

Echo CH9540HPXT for sale at Pillar Equipment, Quad Cities Region, Illinois



Features

Power take offs on utility tractors have become a primary source for much of the work around farms, orchards, golf courses, etc. Any place where you need to turn a pile of branches into a pile of chips.

You choose - self feed or hydrostatic hydraulic feed for infinite feed settings - these chippers mount on your three point hitch and hook directly to the PTO for quick setup and power on demand.

Rotating 360 degrees, the 6-inch square, low profile discharge chute gives you accurate control over the flow of chips produced and is ideal for applications needing ground chip discharge. The 30 x 1 inch thick, 275 pound dynamically-balanced disc, adjustable 4-sided anvil, four reversible chipper blades. The feed roller on the CH9540HP is 15 inches in diameter, containing 10 knife blades for enhanced powerful feeding. Plate steel construction means solid performance for hundreds of hours, and maintenance is enhanced by a hinged disc cover that provides wide open access to the chipper blades and disc.

*NOTE - For Use On Tractors with PTO Horsepower Ratings From 50 hp to 100 hp

Specifications

Chipper
Feed System: Hydraulic
Auto Feed: Yes
Chute Opening: 30” x 31”
Chipping Blades: 4 Reversible Heat - treated
Rotor Size/Weight: 30” x 1.25”/ 275 lbs
Hydraulic Controller: DDC System
Dimensions
Max Chipping Capacity: 9"
L x W x H: 70” x 50” x 93”
Weight: 1475 lbs
Chute Throat: 9'' x 9''
Engine
PTO Input Power Range: 60-100 hp
PTO Capable: Yes
Drive Type: Four banded belt
