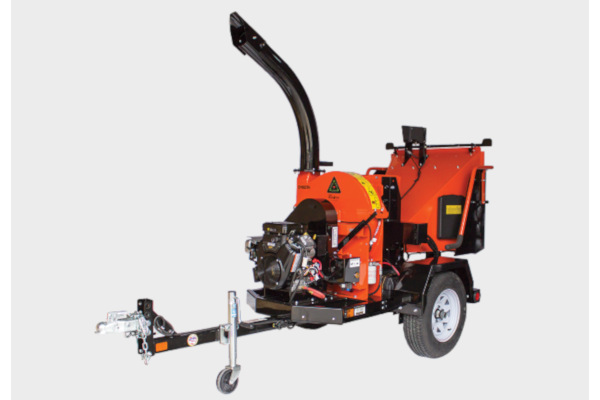

Echo CH6627H 6 Inch Chipper

This 6" capacity commercial chipper is hydraulically fed and features a distinctive 6.5 x 13 inch wide feed opening to accommodate larger brush and tree trimmings. It is powered by an electric start, 627cc Subaru engine for reliable starting, more horsepower, reduced fuel consumption and long life.

The CH6627H also features a unique cantilever mounted rotor. This “propeller” style mounting design allows a user to chip wet or stringy wood types with less tendency of product twist or wrap.

The chippers’ hydraulic feed system is electronically controlled. If the rotor speed drops below optimal operational RPM range, the controller pauses the feed roller to allow the rotor to regain speed, and then restarts feeding once optimal rotor RPM is achieved. This AutoFeed function allows for less fatigue on wear parts and maximizes efficiency.

The CH6627H’s 165 lb. rotor comes equipped with four reversible, heat-treated steel chipper blades. The four-sided striking anvil is adjustable, allowing for the blades to maintain a sharper cutting edge longer and reduce repairs and blade replacement costs.

The CH6627H is a great fit for tree and landscape service operators as well as the perfect mid-size chipper for municipalities and rental companies.

Chipper
Rotor Size/Weight:  Cantilevered 26" x 1"/165 lbs.
Chipping Blades:  4 Reversible Heat-treated
Drive Type: Triple-Banded Belt
Feed System:  Hydraulic
Hydraulic Controller:  DDC System

Dimensions
Max Chipping Capacity:  6''
Chute Opening:  33'' x 37''
Chute Throat:  6.5'' x 13''
L x W x H:  126'' x 57'' x 104''
Weight:  1,581 lbs.

Engine
Make:  Briggs & Stratton Vanguard
Displacement:  627cc
Starter Type:  Electric

Trailer
Wheels/Tires:  P205-75R14
Wheel Base:  50''
